Presented at the exhibition in Munich back in May last year, the Copland CTA 407 integrated tube amplifier is finally on sale. The novelty will replace the model CTA408 in the range of the Danish company. Unlike the latest premieres from Copland Audio , having a hybrid configuration with a tube pre-stage and a transistorized output stage, the CTA407 is a classic tube amplifier with push-pull output stages operating in ultra-linear mode, on a pair of beam tetrodes in each channel, providing an output power of 2×50 W in class A / AB, moreover, more part of the power range, the amplifier operates in pure class A.
At the same time, the harmonic distortion factor does not exceed 0.8%, the operating frequency range extends from 10 Hz to 150 kHz at a level of -3 dB, and the signal-to-noise ratio exceeds 100 dB – impressive performance for a tube amp!

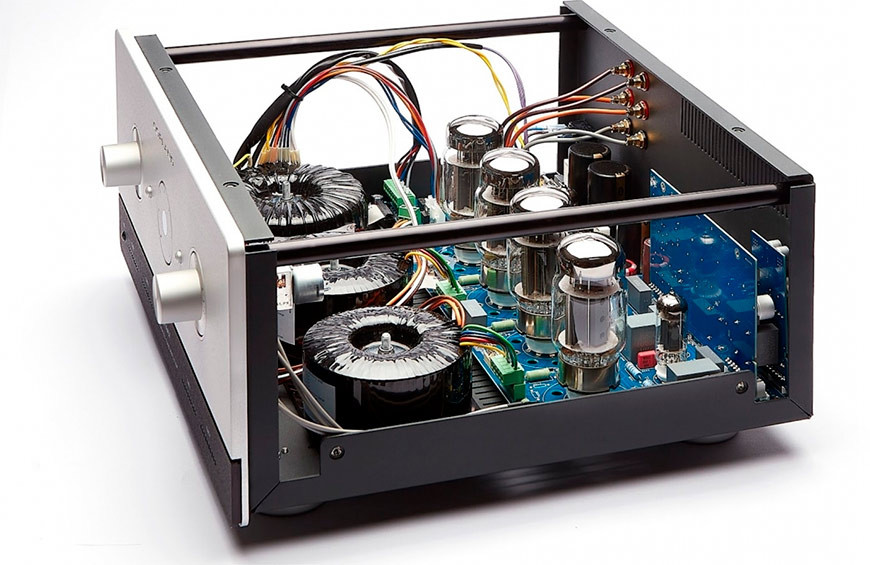

The Copland CTA407 amplifier allows you to use any model of the 6550/KT88/KT120/KT150 family as output tubes – a proprietary lossless automatic bias control system will determine the optimal operation of the selected tubes. Copland CTA407 ships with KT88 tubes in the output stages, two 12BH7 double triodes and one ECC83 double triode in the preamp stages. All transformers in the amplifier (power and two output) are toroidal, of our own production.

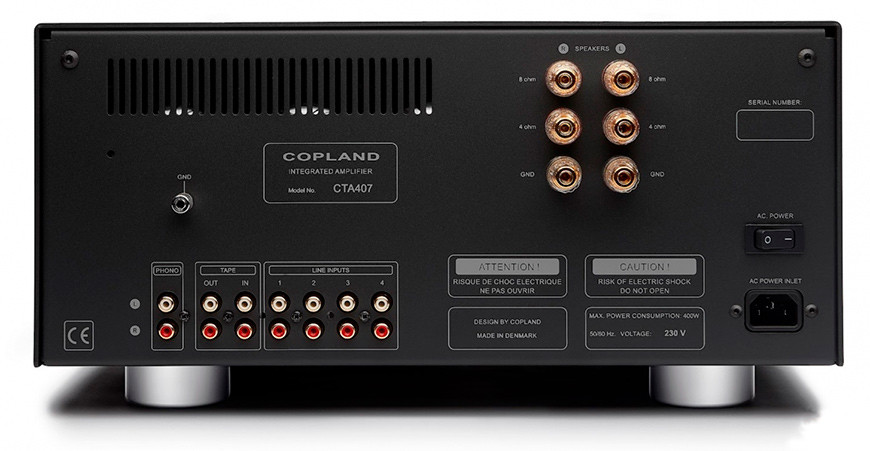

The switching arsenal of the Copland CTA407 integrated amplifier includes four linear unbalanced inputs on RCA connectors and a linear input and output for connecting a tape recorder. There is also a built-in tube phono stage for working with moving magnet (MM) or moving coil (MC) cartridges with high output, inherited from the popular CTA405 model, made on four tubes – a pair of double ECC83S triodes (12AX7) and two double triodes E88CC (6922). To connect acoustic systems, three acoustic terminals are provided in each channel – the output transformers have separate outputs for acoustics with a nominal impedance of 4 and 8 ohms.

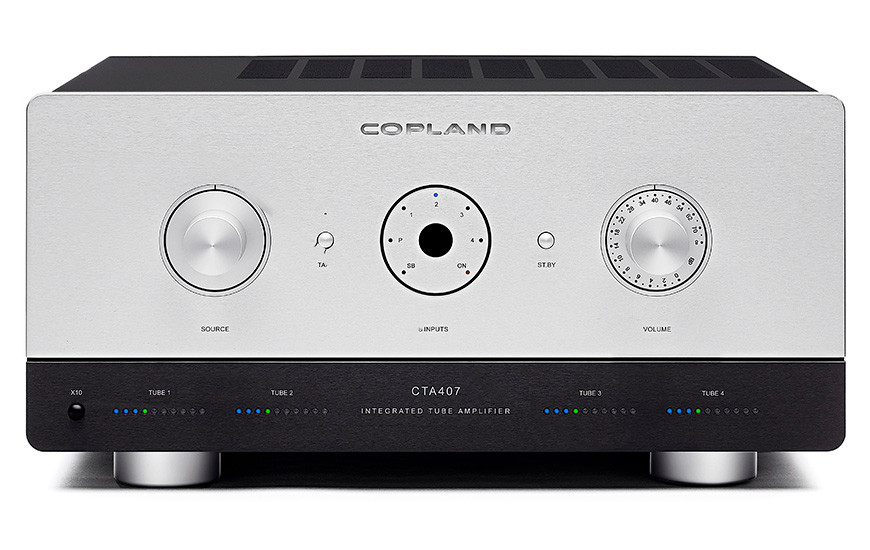

The Copland CTA 407 integrated tube amplifier is equipped with a motorized volume control and relay input selector, allowing them to be controlled using the included Copland RC102A remote control. The novelty is offered in silver and black versions.
