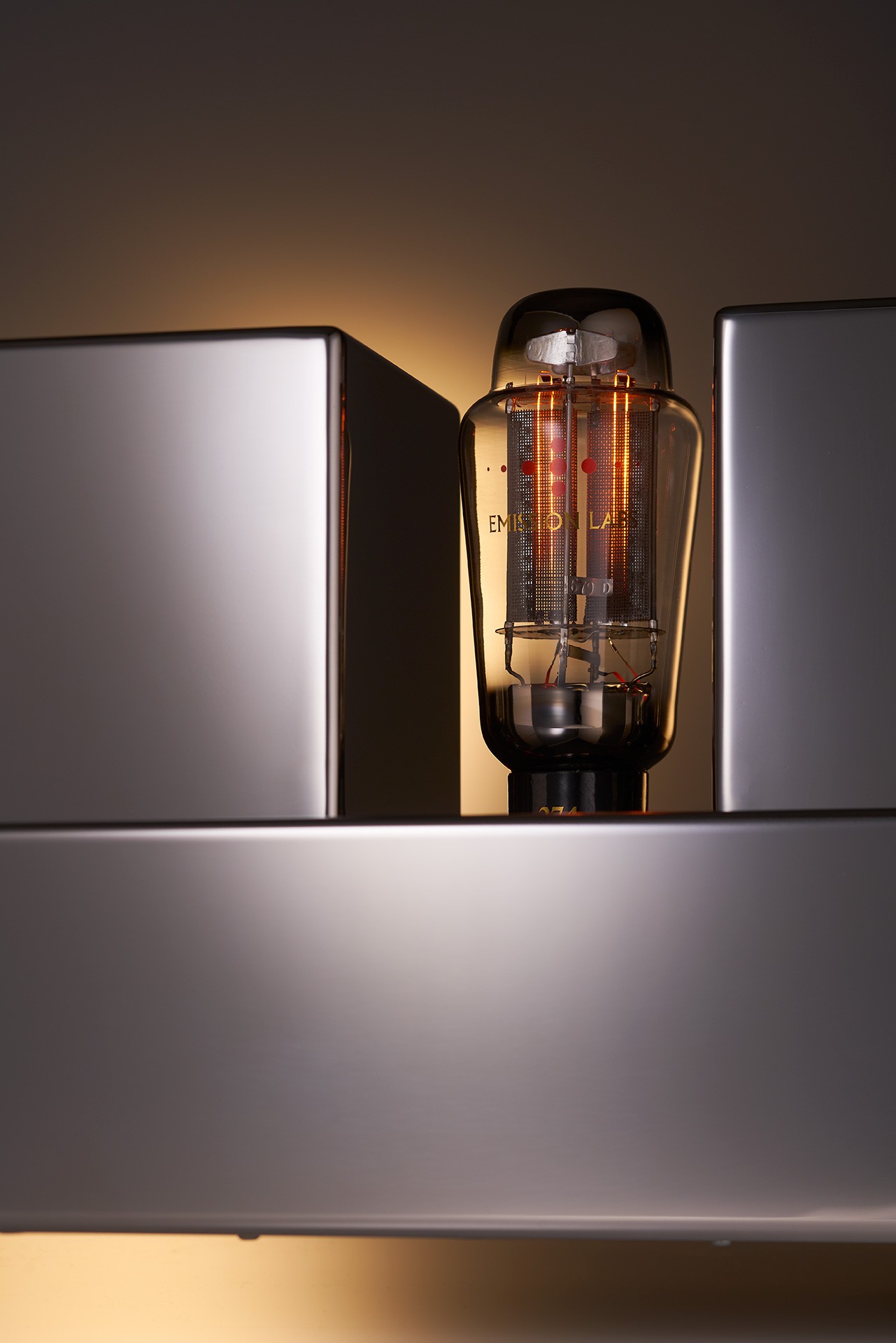

The Polish brand presented a Statement PSE1605 tube monoblock with final stages based on two Emission Labs 1605 triodes connected in parallel, which made it possible to obtain an output power of up to 40 W in class A. The driver stage uses a 20B tube, also from Emission Labs, and the power supply uses a 274B kenotron from the same manufacturer.
The output and matching transformers are custom made from Lundahl. Components: Mundorf MCap Supreme Classic SilverGold Oil, TubeCap and MLytic AG, Caddock and Vishay-Dale, WBT acoustic terminals. Installation – on a 3 mm thick printed circuit board with gold-plated copper tracks, soldering – Cardas solder.
Gain – 20 dB, noise level no more than 1.5 mV (RMS), power consumption – 500 W. Dimensions 240 x 80 x 600 mm, weight 25 kg.
We do not yet know the price.
